120 Megapixel CMOS Sensor: 120MXS

120 Megapixel CMOS Sensor: 120MXS

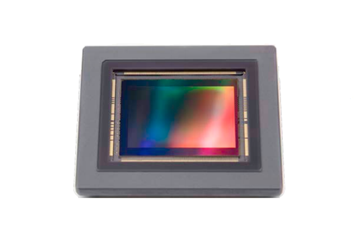

The 120MXS 120 Megapixel CMOS Sensor has a pixel count equivalent to the approximate number of photoreceptor cells in the human eye. Recording capabilities at approximately 60x the full HD resolution of 1920 x 1080 are made possible by parallel signal processing, which reads signals at a high speed from multiple pixels.

The 120MXS sensor has a size of 29.22 x 20.20 mm, a square pixel arrangement of 2.2 μm x 2.2 μm with 122 million effective pixels, and 28 digital signal output channels. Ultra-high-resolution is made possible by parallel signal processing, which reads signals at high speed from multiple pixels. All pixel progressive reading of 9.4 fps is made possible by 28 digital signal output channels. It is available in RGB, or in monochrome with twice the sensitivity.

Ideal 120MXS applications include:

  • 3D metrology
  • Aeronautic imaging
  • Digital archives
  • Document scanning
  • Flat panel display inspection
  • Intelligent traffic systems
  • Large area surveillance
  • Machine vision
  • Mapping
  • Medical imaging
  • Packaging and inspection
  • Reconnaissance
  • Scientific research
  • Security

For more information on this sensor such as additional features, specifications, and diagrams, download the brochure.
