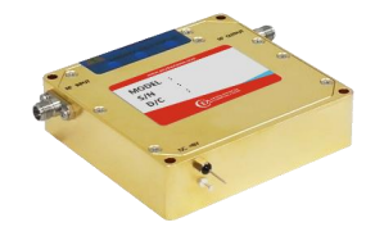

26.5 - 40 GHz, 30 dBm Medium Power Amplifier: MPA3013
The MPA3013 is a high-performance medium power amplifier designed for applications requiring a wide operating frequency range and significant output power in a compact form factor.
Key Features and Benefits:
- Wideband Operation: Covers 26.5 to 40 GHz for versatile applications.
- High Power Output: Delivers 30 dBm minimum output power at 1 dB compression point.
- Superior Linearity: Class A design for low distortion and accurate signal amplification.
- Unconditionally Stable: Eliminates external matching networks for simplified system integration.
- Internal Voltage Regulator: Reduces external components and improves reliability.
- Low Input VSWR: Ensures efficient power transfer from the source.
- Compact Design: Suitable for space-constrained applications.
- High Efficiency: Minimizes power consumption and thermal management requirements.
Applications:
- Radar systems
- Satellite communications
- Electronic warfare
- Test and measurement equipment
- Wireless infrastructure
Technical Specifications:
- Frequency Range: 26.5 to 40 GHz
- Output Power: 30 dBm minimum at 1 dB compression point
- Gain: [Insert typical gain value]
- Noise Figure: 6 dB
- Input VSWR: 2:1
- DC Bias Voltage: 8 volts
- Maximum Current: 4.6 amps
